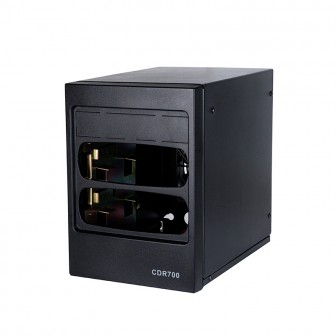

CDR700 repeater housing

repeater housing power supply

Power supply characteristics

·Output overvoltage, overcurrent protection

·Automatically switch to battery power supply during power failure

Contact Us
Product Details

Power supply characteristics

·Output overvoltage, overcurrent protection

·Automatically switch to battery power supply during power failure

SPECIFICATION:

Model No

CDR700

Output

DC Voltage

13.8VDC

Rated Current

15A

Current Range

0~15A

Rated Power

207W

Ripple & Noise Max

50mVp-p

Voltage Adjustment Range

13.6~14V

Voltage Precision

±1.0﹪

Line Regulation

±0.5﹪

Load Regulation

±0.5﹪

Startup, Rising, Keeping Time

200ms,80ms,20ms

Input

Voltage Range

197VAC~242VAC或110VAC±10%

Frequency Range

47~63HZ

Efficiency

≥50﹪

Leakage Current

1min/5mA/400VAC

Protection



Over Load

Start load protection when 105%~150%'s rated output power

Protection Model: Shut down output, recovery it after the power on.

Environment



Operation Temperature, Humidity

-10~+60℃,20~90﹪RH

Storage Temperature, Humidity

-20~+85℃,10~95﹪RH

Temperature Coefficient

±0.03﹪/℃(0~50℃)

Vibration

By X,Y,Z axes,10~500HZ,2G 10min/period,total 60minutes

Safety and Battery
Compatible

Safety Codes

Comply with UL1012

Compression Strength

I/P-O/P:1.5KVAC  I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

Insulation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC 70﹪RH

Electromagnetic Interference(EMI)

Comply with FCC Part 15j Conduction Class B

Others

MTBF

322.4K hrs min.MIL-HDBK-217F(25℃)

Dimensions(L*W*H/mm)

W220mm×H185mm×L325mm

Packing

6kg

Remarks

1. If it's in the absence of special note, all of the specifications are measuring in the following conditions: Input 230VAC, Rated load, 25°C of temperature.

2. Ripple and Noise measurement: use a Twisted-Pair of 12", and the terminal must parallel the capacity of 0.1uF and 47UF at the same time.

3. Precision: It contains set errors, Linear regulations and Load regulations.
