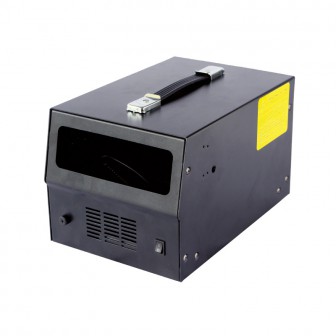

Repeater Housing

MTM800

Contact Us
Product Details

Our company can produce the repeater housing with power supply for different brand and

  • specification radios according to your special requirements. Our general specifications are
  • following:
  • VERTEX STANDARD(VX2508/VX3200/vs2208/VX3208);
  • KENWOOD (TK868/TM271/TR8100/TR8180)
  • ICOM(FR211/IC-FR3000)
  • MOTOROLA(GM340,GM3000,GM3188,GM950,CDR700)

Indicated Parameters

Model No Input  Voltage Output Voltage Output Current Efficiency Ripple Battery Voltage Dimension
(W*L*H/mm)		 Kg/pc
TMR880I 220Vac 13.8VDC 15A 85% 50mV 12V 220*325*190 11kg
GM300 220Vac 13.8VDC 15A 55% 10mV 12V 191*265*162 9kg
MTO-15B 220Vac 13.8VDC 15A 55% 10mV 12V 200*225*68 9kg
GM340 220Vac 13.8VDC 15A 55% 10mV 12V 210*275*165 9kg
GM3188 220Vac 13.8VDC 15A 55% 10mV 12V 191*265*258 9kg
GM950 220Vac 13.8VDC 15A 55% 10mV 12V 191*265*250 9kg
VX3208-15B 220Vac 13.8VDC 15A 55% 10mV 12V 191*265*250 9kg
TK8180-15B 220Vac 13.8VDC 15A 55% 10mV 12V 191*314*260 10kg
MTM800 220VAC 13.8VDC 15A 55% 50mV 12v 220*210*325 10kg
  • Input voltage can be manually converted between 110Vac and 220 Vac for the above iteems.
    Customized power supplies for installing one radio or two radios are available
    This chassis can be designed to be switching or linear models.
