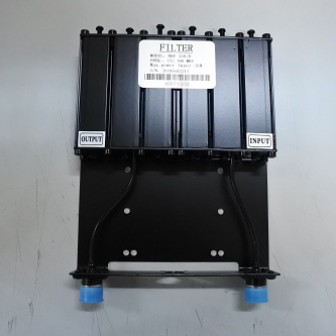

Filter HRF-150B

HRF-滤波器技术参数说明书

FILTER Specifications



型号 Model:HRF-150/B

频率范围 Frequency Range(MHz):130-180

工作带宽 Bandwidth(KHz):±250

插入损耗 Insertion Loss(dB):<1.5

隔离度 Isolation (dB):>30

驻波比 V.S.W.R:<1.3

阻抗 Nominal Impedance(Ω):50

连接形线 Standard Termination:N-K/BNC

尺寸Dimensions (mm) 216×154×32

重量 Weight (KG):1.2



* Passed ISO9001 international quality system certification*

Wiring method: INPUT is connected to the duplexer LOW port or receiving antenna, and OUTPUT is connected to the receiver.
