Filter HRD-450

HRD-series duplexer specifications

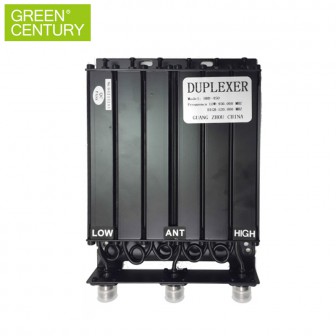

HRD- series duplexer is an important device which is served for the duplex radio to transceive through one antenna. The Model HRD-150, HRD-230, HRD-350, and HRD-450 of duplexers are comprised of good temperature compensative device and sturdy six cavity resonator. They have the advantages of low insertion loss, high isolation degree, stable performance, and beautiful appearance.

Model-350 of duplexer is specifically designed for the 350MHz cluster communication. It has not only all the performances as the same series of duplexer, but also a very wide working band.

Main technical parameters

          MODEL

HRD-150

HRD-230

HRD-350

HRD-450

Frequency Range(MHz)

130-155

147-180

220-240

330-390

380-450

440-512

Bandwidt(KHz)

±100-200

±500

±200-700

±100-300

Frequency Spacing(MHz)

4.6/5.7

7

5/10

5/10

Insertion Loss(dB)

<1.2/0.7

<0.7

<1.2/0.7

<1.2/0.7

Isolation (dB)

>80

>80

>80

>80

Suppression(dB)

>80

>80

>80

>80

Return Loss(dB)

>16

>16

>16

>16

V.S.W.R

<1.3

<1.3

<1.3

<1.3

Norma Impedance(Ω)

50

50

50

50

Max.powerInput(W)

50

50

50

50

Standard Termination

N/BNC

N/BNC

N/BNC

N/BNC

Dimensions(mm)

220×154×32

220×154×32

275×154×32

225×154×32

Weight(KG)

1.2



1.2

1.2

1.2

Passed the ISO9001 international quality system certification)

Note: Can be customized. The minimum and the maximum value of VHF transceiver interval is 3.3MHz to 15.0MHz; and the minimum and the maximum value of UHF transceiv
