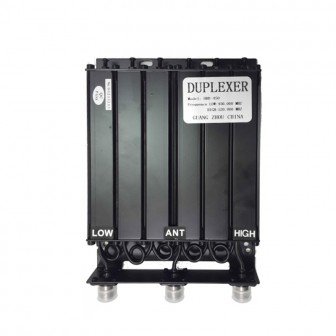

Product Details

Main technical parameters

          MODEL

HRD-150

HRD-230

HRD-350

HRD-450

Frequency Range(MHz)

130-155

147-180

220-240

330-390

380-450

440-512

Bandwidt(KHz)

±100-200

±500

±200-700

±100-300

Frequency Spacing(MHz)

4.6/5.7

7

5/10

5/10

Insertion Loss(dB)

<1.2/0.7

<0.7

<1.2/0.7

<1.2/0.7

Isolation (dB)

>80

>80

>80

>80

Suppression(dB)

>80

>80

>80

>80

Return Loss(dB)

>16

>16

>16

>16

V.S.W.R

<1.3

<1.3

<1.3

<1.3

Norma Impedance(Ω)

50

50

50

50

Max.powerInput(W)

30/50

30

30/50

30/50

Standard Termination

N/BNC

N/BNC

N/BNC

N/BNC

Dimensions(mm)

214×154×32

214×191×39

214×154×32

275×154×32

275×191×39

223×154×32

223×191×39

Weight(KG)

1.2/2.0



1.2

1.2/2.5

1.2/2.0

(Passed the ISO9001 international quality system certification)

Note: Can be customized. The minimum and the maximum value of VHF transceiver interval is 3.3MHz to 15.0MHz; and the minimum and the maximum value of UHF transceiver interval is 4.0MHz to 20.0MHz
