Specification：
|
Model No |

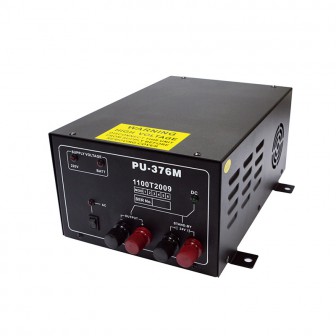

PU-376M |
|
|
Output |
DC Voltage |
27.6V |
|
Rated Current |
20A |
|
|
Current Range |
0-20A |
|
|
Rated Power |
550W |
|
|
Ripple & Noise Max |
10mVp-p |
|
|
Voltage Adjustment Range |
27.3～27.7V |
|
|
Voltage Precision |
±1.0% |
|
|
Line Regulation |
±0.2% |
|
|
Load Regulation |
±0.2% |
|
|
Startup, Rising, Keeping Time |
200ms 80ms 20ms |
|
|
Input |
Voltage Range |
198VAC～242VAC或110VAC±10% |
|
Frequency Range |
47～63HZ |
|
|
Efficiency |
≥50% |
|
|
Leakage Current |
1min/5mA/400VAC |
|
|
Protection
|
Over Load
|
After more than set current value, it will start the over-current protection |
|
Protected mode: voltage drops rapidly, the current rebound, exit can automatic recovery over-current protection |
||
|
Environment
|
Operation Temperature, Humidity |
10～+45℃ 20～90%RH |
|
Storage Temperature, Humidity |
-20～+85℃ 10～95%RH |
|
|
Temperature Coefficient |
±0.03﹪/℃（0～50℃） |
|
|
Vibration |
By X,Y,Z axes,10~500HZ,2G 10min/period,total 60minutes |
|
|
Safety and Battery |
Safety Codes |
Comply with UL1012 |
|
Compression Strength |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|
|
Insulation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC 70﹪RH |
|
|
Electromagnetic Interference(EMI) |
Comply with FCC Part 15j Conduction Class B |
|
|
Others |
MTBF |
322.4K hrs min.MIL-HDBK-217F(25℃) |
|
Dimension |
300＊360＊155mm(L＊W＊H) |
|
|
Packing |
12.2Kg Pc/bo×1pc |
|
|
Remarks |
1. If it's in the absence of special note, all of the specifications are measuring in the following conditions: Input 230VAC, Rated load, 25°C of temperature. 2. Ripple and Noise measurement: use a Twisted-Pair of 12", and the terminal must parallel the capacity of 0.1uF and 47UF at the same time. Measuring under 20MHZ wideband. 3. Precision: It contains set errors, Linear regulations and Load regulations. |
|
